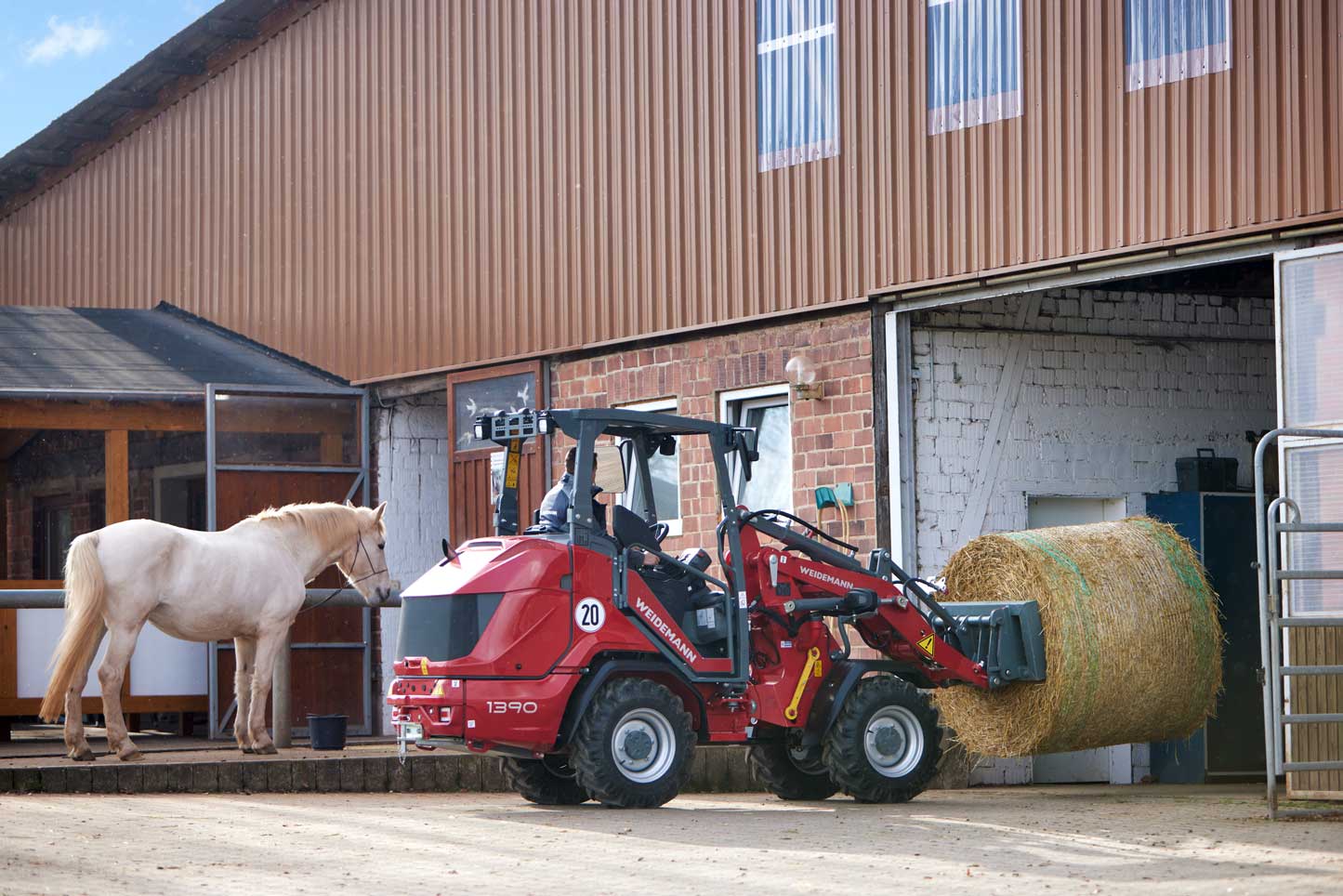

Weidemann 1390 farm loader transporting hay bale into a stable near a horse barn.

Weidemann 1390 – Compact Power and Versatility for Agricultural and Utility Work

The Weidemann 1390 articulated wheel loader delivers outstanding performance in tight spaces without compromising on strength. Ideal for a range of tasks including hay bale handling, barn cleaning, and snow removal, this compact loader is a must-have for farms, equestrian centers, and municipalities.

Equipped with a powerful engine up to 45 hp (33.5 kW), the 1390 features a tipping load of up to 3,086 lbs (1,400 kg) and a lifting height of approximately 10.5 ft (3.2 m). Its articulated steering ensures excellent maneuverability, while a variety of cab configurations and attachment options provide year-round versatility and operator comfort.

Quick Specs:

MODEL

ENGINE

WEIGHT (STD)

LENGTH

(w/bucket)

WIDTH

HEIGHT

(w/cab)

1390

54.5

YANMAR, 3 CLY

6,063 lb

14.67′

3.69′

7.68′

Driving Speed: 0 – 18.6 mph

Highlights

- - Articulated pendulum joint for high level traction control and manoeuvrability
  - Two strong lift cylinders for proper load distribution and stability
  - Exceptional pushing power from the drive on the planetary axle
  - 100% differential lock
  - High flow hydraulics are optional if needed for high demand front attachments
  - Trailer towing capability up to 3.5 t with optional trailer hitch
  - Large selection of attachment tools
  - Large selection of tires

ecDRIVE

Features 4 different drive modes based on requirement needed
- Auto Mode: Full, 100% performance of machine
- Eco Mode: When desired speed is reached, machine reduces engine speed to reduce fuel consumption and noise
- Attachment Mode: Provides constant feed to attachment based on engine rpm. Automatically senses load and adjusts speed accordingly. This can also be overridden if necessary.
- M-Drive Mode: Eliminates need for inching during Y-loading cycles by setting the engine’s rpm and the pressure on the drive pedal.
Auto hold or hill-hold functions automatically engage the electric parking brake when machine stops moving, is placed in neutral or when driver exits the cab

Kinematics

- - P, P long and PZ Kinematics for spot-on parallel guidance at all lifting ranges
  - P-kinematics long is an option which increases the lifting height up to 20 cm.
  - P-Z option provides a good deal of lifting and shearing force along with the proper parallel guidance

Quick and Simple Attachment Change

- - Various attachments available with easy hydraulic quick change system
  - Easily accessible knob for pressure release of 3rd control circuit on outside of telescoping arm

Accessible Service Features & Cab Comfort

- - Tilt over cab for easy access to engine, hydraulic and electric system
  - Good side views and load visibility
  - Comfortable, easy-to-use joystick
  - Low height and optimal headroom makes cab entry easy
  - Adjustable steering column

Book a Farm Visit- Weidemann

"*" indicates required fields

Name*

First Last

Farm Name

Farm Location*

Phone*

I'm Interested In

On Farm Demo

Financing Options

Trade-In Evaluation

Check all that apply.

CAPTCHA

Watch the 1390 in action!

View 1390 Specs

View Weidemann Hoftrac Brochure

Go to the Weidemann Website

Call for a Quote

Financing

What kind of farms is the 1390 farm loader best suited for?

The 1390 farm loader is well-suited for mixed and livestock operations across southern Alberta and the Prairie region. It’s commonly used for tasks like moving feed, handling bales, loading grain, and general yard work where reliability and efficiency matter. Farmers choose this size of loader when they need a strong balance of lift capacity, easy tractor handling, and durability through long working seasons. It performs well in both dry, dusty conditions and cold winter operations typical of Alberta farms.

Will the 1390 fit my tractor and existing setup?

Fitment depends on your tractor model, mounting system, and hydraulic specifications. The 1390 is commonly paired with mid- to higher-horsepower tractors found on many southern Alberta farms, but exact compatibility should always be confirmed before installation. Because farms often run mixed equipment brands, mounting kits and hydraulic hookups are selected to match existing setups. A proper fit check ensures safe operation, correct lift performance, and smooth hydraulic response under load.

How much maintenance does the 1390 farm loader require?

Maintenance is straightforward and similar to other modern farm loaders. Regular greasing of pivot points, inspection of pins and bushings, and checking hydraulic hoses will help maintain performance during peak seasons. Prairie conditions—dust, mud, and cold temperatures—make routine inspections especially important. Keeping hydraulic connections clean and addressing wear early helps reduce downtime during busy periods like seeding and harvest. Most operators integrate loader checks into their regular equipment maintenance schedule.

Can the 1390 handle heavy bales and winter feeding work?

Yes, the 1390 is commonly used for bale handling and winter feeding tasks on livestock farms across southern Alberta. It is designed for repeated lifting cycles and can handle large square bales, silage, and frozen materials when properly equipped. Using the right attachments, such as bale spears or grapples, improves both efficiency and safety. Its stable design helps maintain control in uneven yard conditions, making it a reliable choice for demanding winter feeding operations.
