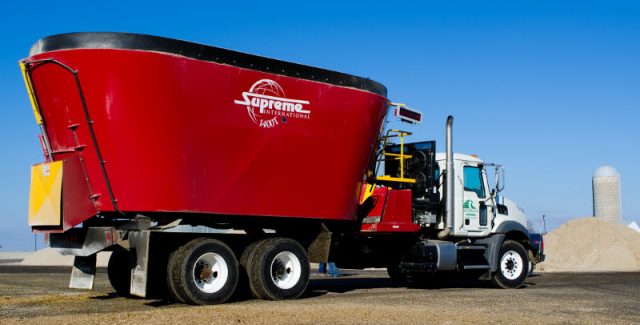

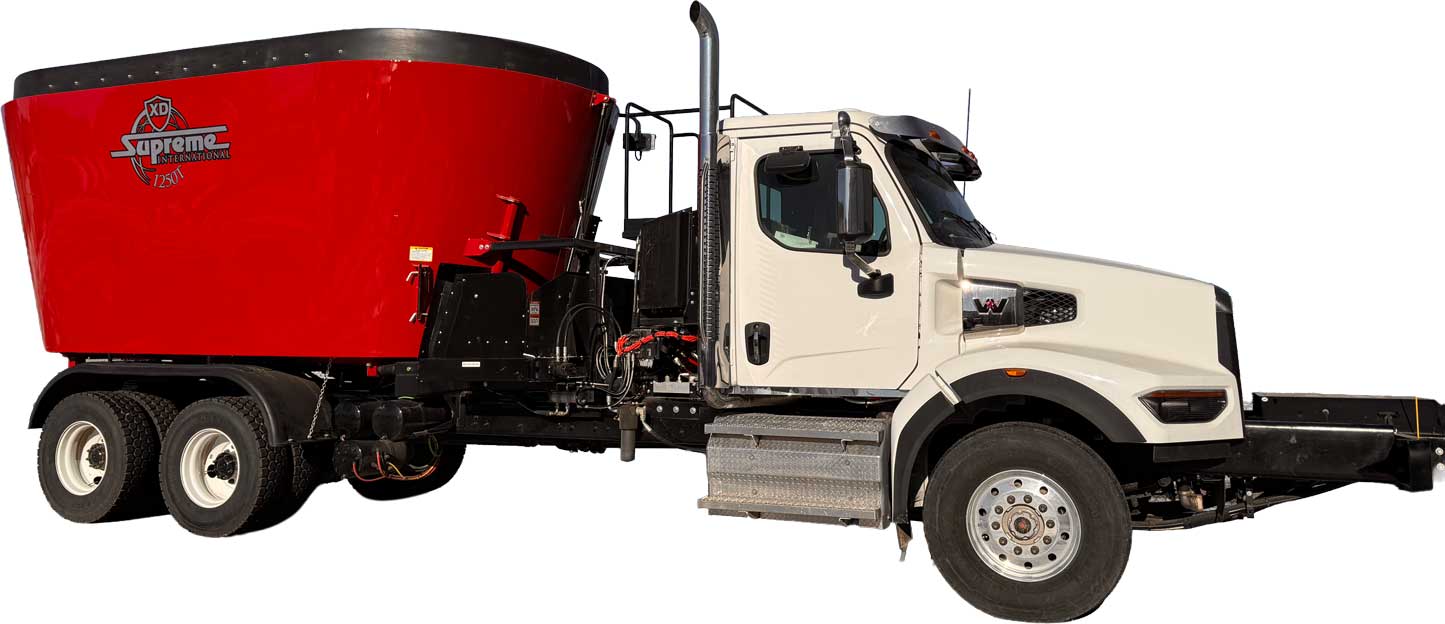

Supreme Truck Mount Vertical Mixers
Supreme truck mount vertical mixers are built for operations that need to cover ground quickly while delivering consistent, high-quality feed. At Hanlon Ag Centre, we offer these high-capacity mixers designed for feedlots and large-scale cattle operations across Southern Alberta.
- Ideal for feeding large areas efficiently
- Consistent, uniform ration mixing
- Heavy-duty construction built for long-term performance
Built for Performance and Efficiency
Supreme truck mount mixers are engineered with a heavy-duty drive system and patented auger design, delivering reliable mixing and long-lasting performance in demanding feeding conditions.
- Two-stage heavy-duty planetary drives for consistent power transfer
- AR200 steel tub walls for increased durability
- Patented freestanding vertical augers for uniform mixing
- Independent oil reservoirs for extended component life
Advanced Control and Feeding Technology
Supreme Gen3 truck mount mixers bring automation and precision feeding to modern operations, improving efficiency and reducing operator fatigue.
- Automated control system for consistent feed processing
- Three operating modes: loading, mixing, and unloading
- Real-time system monitoring to protect your investment
- Low torque requirements for reduced fuel use and longer component life
Consistent Mixing Performance
With replaceable forage cutting blades and vertical auger design, Supreme truck mount mixers produce uniform rations while maintaining forage quality.
- 8–10 replaceable cutting blades depending on model
- Manual restrictor plates to control feed flow
- 4-point scale system for accurate ration management
- Hydraulic discharge conveyors for efficient feed delivery
Designed for High-Capacity Feeding
Truck mount mixers are ideal for operations that have a lot of ground to cover when feeding livestock, allowing producers to mix and deliver feed efficiently in a single system.
Available in a wide range of sizes, these mixers provide capacity options to match operations of all sizes.
- Mechanical drive models from 555 ft³ to 649 ft³ (15.7 m³ to 18.4 m³)
- Gen3 drive models up to 1,298 ft³ (36.8 m³)
Drive System Options
Mechanical Drive
Simple and reliable PTO-powered performance, using a similar system to pull-type mixers with fewer moving parts for reduced maintenance.
- Proven design for dependable operation
- Lower complexity and easy maintenance
- Ideal for consistent daily feeding
| Model | Drive Type | Capacity | Max Payload | Horsepower Required |
|---|---|---|---|---|
| 500T | Mechanical | Up to 555 ft³ (15.7 m³) | 10,000 lbs (4,535 kg) | 210 HP (157 kW) |
| 600T | Mechanical | Up to 635 ft³ (18.0 m³) | 10,000 lbs (4,535 kg) | 260 HP (194 kW) |

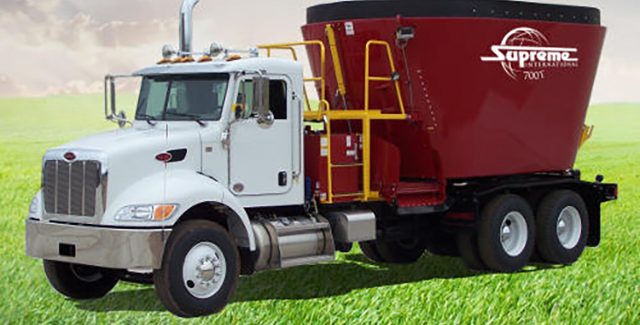

| 700T | Mechanical | Up to 649 ft³ (18.4 m³) | 10,000 lbs (4,535 kg) | 260 HP (9194 kW) |
Gen3 Drive System
Advanced automation and precision control for high-efficiency feeding operations.
- Front Engine PTO (FEPTO) for improved access and lower truck cost
- Rear Engine PTO (REPTO) for shorter overall truck length and protected components
- Designed for high-efficiency and modern feeding systems
- Available in SD, HD, and XD
| Model | Drive Type | Capacity | Max Payload | Horsepower Required |
|---|---|---|---|---|
| 900T | Gen3 | Up to 841 ft³ (23.8 m³) | 24,000 lbs (10,886 kg) | 300 HP (224 kW) |
| 1050T | Gen3 | Up to 958 ft³ (27.1 m³) | 40,000 lbs (18,144 kg) | 370 HP (276 kW) |

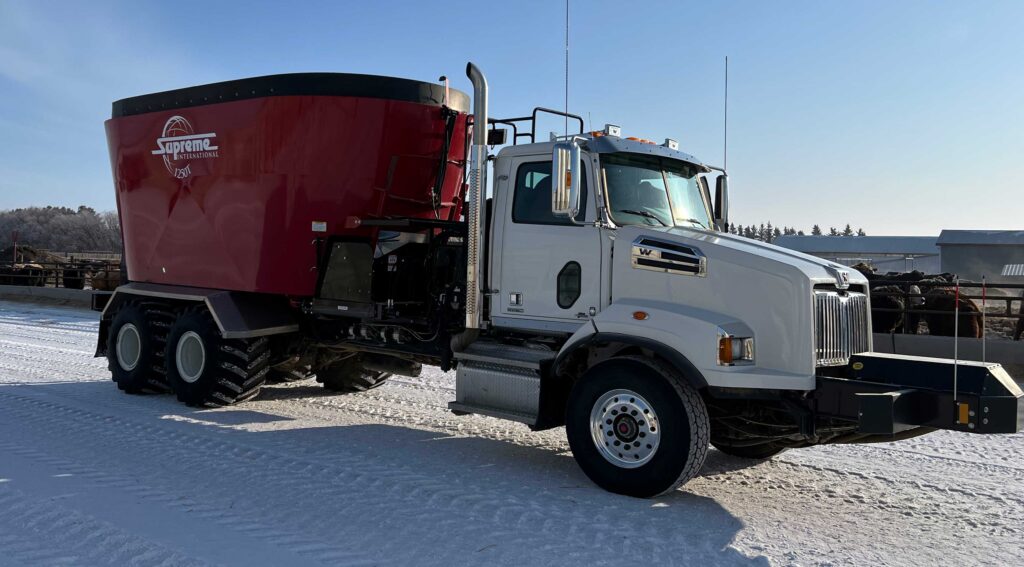

| 1250T | Gen3 | Up to 1,131 ft³ (32.0 m³) | 40,000 lbs (18,144 kg) | 370 HP (276 kW) |
| 1450T | Gen3 | Up to 1,298 ft³ (36.8 m³) | 40,000 lbs (18,144 kg) | 400 HP (298 kW) |
| Model Type | Basic Idea | Best For | Duty Level |
|---|---|---|---|
| SD (Standard Duty) | More durable with upgraded materials for everyday reliability. | Typical cow-calf or dairy operations | Standard to high use |
| HD (Heavy Duty) | Reinforced design with liners and heavier components for longer life. | Larger operations and tougher rations | High use |
| XD (Extreme Duty) | Maximum durability with heavy liners and extreme-duty components. | Feedlots or very demanding, continuous use | Extreme use |
Click to See Mixer Models Details
CLICK HERE TO EXPLORE SUPREME’S CUSTOMIZATION OPTIONS
Get a Quote Today
Looking for a reliable feed mixer that can handle Alberta conditions? Contact Hanlon Ag Centre in Lethbridge today to learn more about Supreme pull-type vertical mixers and find the right model for your operation.
Supreme International is Made In Canada • Wetaskiwin, Alberta
Mixer Model Comparison
SD (Standard Duty) Mixers
Built for standard to high daily use, SD mixers are one of the most versatile options for cow-calf and dairy operations that require consistent performance.
-
- Abrasion resistant tub walls
- Abrasion resistant augers
- Supreme knives and backing plates
- Oversized planetary gears
- Optional upgrades available including auger hard facing and hard-faced tub components
- Available in pull-type, truck mount, and stationary models
HD (Heavy Duty) Mixers
Engineered for high to extreme duty cycles, HD mixers are ideal for larger herds and operations running longer or more demanding mixing cycles.
- Abrasion resistant tub walls with 3mm 3CR12 wall liner
- Abrasion resistant augers
- Heavy-duty knives
- Supreme backing plates
- Oversized planetary gears
- Optional upgrades including stainless steel lined augers and tub floor liners
- Available in pull-type, truck mount, and stationary models
XD (Extreme Duty) Mixers
Built for the most demanding feeding operations, XD mixers offer maximum durability and are designed for large-scale commercial feeding environments.
- Abrasion resistant tub walls with 5mm 3CR12 wall and floor liners
- Xtreme duty augers
- Heavy-duty knives and backing plates
- Oversized planetary gears
- Auger magnets
- Optional upgrades including hard-faced or stainless steel lined augers
- Available in pull-type, truck mount, and stationary models
