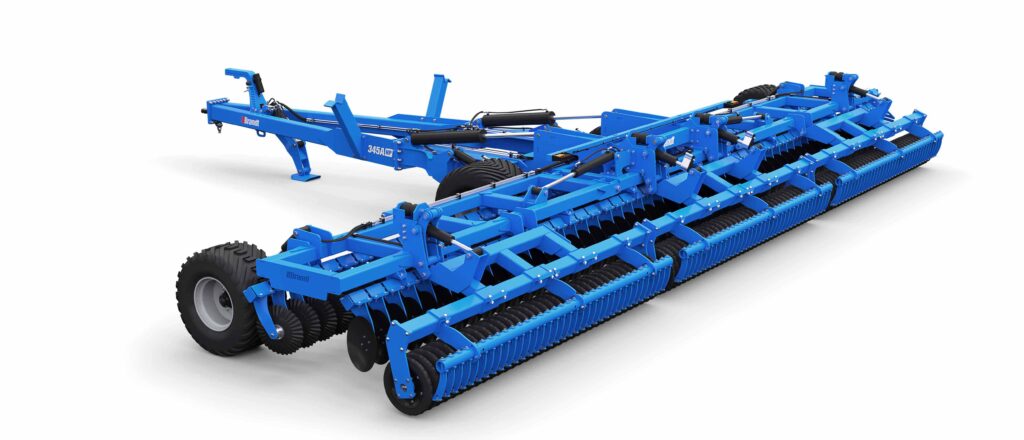

Brandt High Speed Discs
Brandt’s new high speed disc delivers on increasing productivity, decreasing maintenance and enhancing versatility. It can prepare ideal seedbeds, manage residue, level ruts and reclaim wetlands while requiring fewer passes.
| MODEL | WORKING WIDTH | WEIGHT | HITCH WEIGHT |
| 216A HP | 15′ 10″ | 17,810 lbs | 5343 lbs |
| 221A HP | 20′ 9″ | 20,685 lbs | 6,206 lbs |
| 326A HP | 26′ 8″ | 27,664 lbs | 8,299 lbs |
| 331A HP | 31′ 6″ | 28,905 lbs | 8,672 lbs |
| 338A HP | 37′ 4″ | 31,924 lbs | 9,577 lbs |
| 341A HP | 41′ 10″ | 37,234 lbs | 11,170 lbs |
| 345A HP | 45′ | 38,960 lbs | 11,688 lbs |
The high speed disc offers operating speeds from 10-14 mph. Its active wingdown pressure system provides consistent ground engagement at high speeds. This disc handles multiple applications and delivers a straight pull when fracturing soil or burying and mixing residues.
Disc Configurations
- 14º front and 17º rear disc angles
- 5″ disc spacing
- 20″ or 22″ disc sizes
Disc Options
- U-Notch Discs handle heavy residue
- Smooth Discs offer uniformity and high wear resistance
- Fluted discs are a hybrid of each and provide “self-sharpening” tool edge
Independently mounted discs with rubber torsion suspension provide easy maneuvering over obstructions while delivering consistent ground pressure.
Durable and Resilient Design
- Induction hardened chrome plate pins on all hinge points
- Features robotic welding and premium components
- Average weight of 1000 lbs per foot
- Hydraulic hose management arm
- Heavy-duty hydraulic jack
- Powder coat finish
Low-Maintenance
- Lateral gang adjustments reduces replacement frequency
- Easily accessible adjustment points and control
- Movable discs in order to compensate for blade wear
- Rollers have only 6, easily accessible grease points
- Sealed disc hubs require no greasing on main machine
- Composite bushings with nylon wipers require no greasing
Finishing Options
- Rear finishing suspension to absorb shock
- Rubber, cage or spring rollers
Brandt Product Walkaround Video
