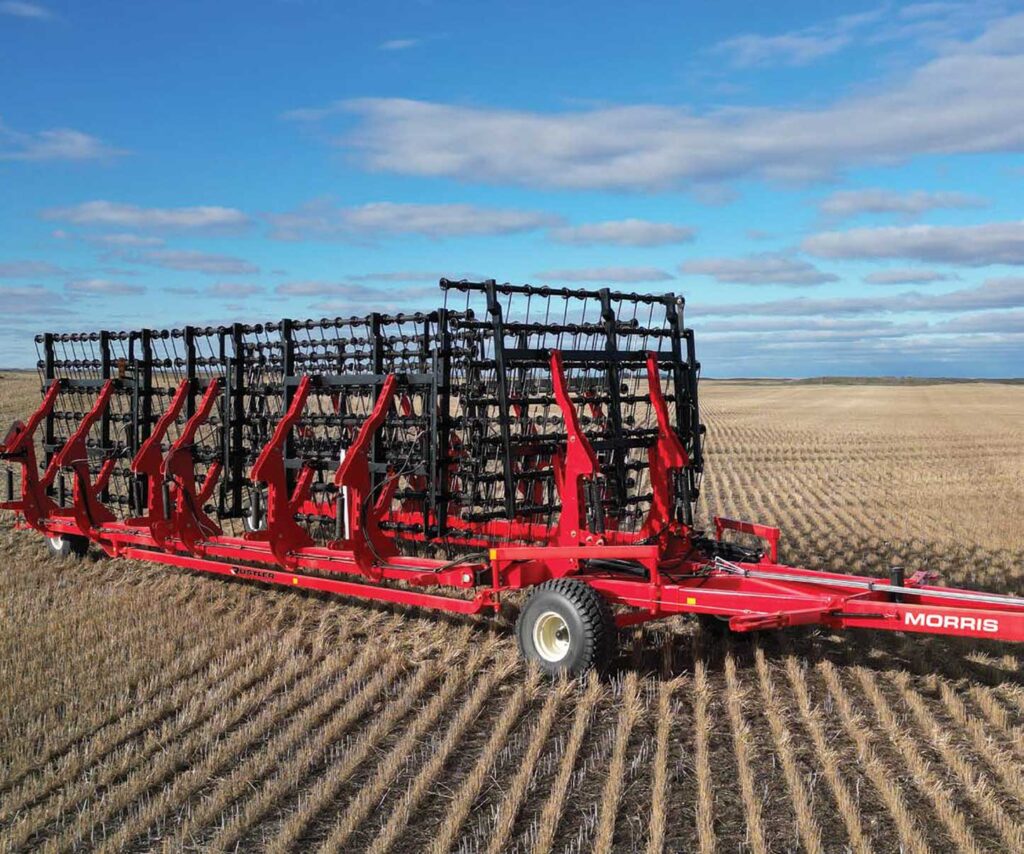

Rustler Heavy Harrow
The Rustler heavy harrow is available in both a 7-bar or 5-bar configuration. It is a high performance harrow which leaves the crop with a smooth finish and even residue distribution. The parallel linkage design provides 14 inches of travel with each section of the harrow moving independently of the frame. Evenly distributed down force is applied at all 4 linkage points of each section. The Rustler’s design provides consistent ground contact and evenly distributes crop residue.
Features:
Hydraulic Tine Control
- Operator is able to control the tine angle from the cab with the hydraulic control option (40-85º range)
- Minimize time on making adjustments for changing straw conditions with the hydraulic on-the-go tine control
- Hydraulic tine control allows you to apply an aggressive tine angle giving more aggressive force
- Changing tine adjustment on the go prevents baling of residue
Hydraulic Tine Control Operator is able to control the tine angle from the cab with the hydraulic control option (40-85º range)
Heavy Duty Design 8″ x 8″ wall wing booms with X-brace main frame
Auto Fold Hydraulic pivoting end wheels allows for easy folding during transport
Auto-Locking Draft Arms Cable-free system ensures safe and secure field position of the harrow
Tungsten-Carbide Harrow Tines Provide a long-life tine that eliminates the possibility of straw hooking
Flexible Knuckle Delivers solid ground contouring connection between the mainframe and wings
5 Bar Harrow
- 9/16″ x 28″ tines with a spacing of 2.6″
- Optional 5/8″ diameter available
- Traditional heavy harrow
- Spreads and breaks up residues
- Offers ideal granular chemical incorporation
- Capable of tillage functions to level machinery ruts or firm loose soil
- Less tines deliver increased ground pressure for improved soil penetration
7 Bar Harrow
- 1/2″ x 24″ tines with a spacing of 1.4″
- Ideal for spreading crop residue
- Additional tines aid in residue dispersal
- Smaller diameter of tines creates a “whipping action” efficiently spreading residue
- Less tines give it the capability to deliver increased ground pressure
• S-shaped harrow frames keep consistent 2 inch spacing across full width of the harrow
Superior Independent Suspension
• Harrow bounce is prevented in rough conditions because of the ability to transfer the weight of the tool bar onto the harrow sections
• Adjustment wedge gives the operator with the ability to maintain consistent down pressure even with several inches of wear
