Sunflower 9531 Fertilizer Grain Drill
Designed for large acre seed and feed capabilities, the Sunflower 9531 drill features a high capacity hopper which can be used for seed and feed combinations.
• Working widths 30′ or 40′
• Divided hopper
- Holds 2.4 bushels of seed and 120 pounds of dry fertilizer per foot for applying fertilizer when planting
- When converted to all seed mode holds up to 150 bushels (40 ft model)
• 7.5″ or 10″ row spacings
• Staggered grain box
Sunflower Grain Drill Features
-

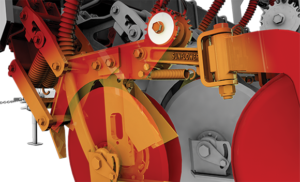

- All-Purpose “Heads Up” Opener
-

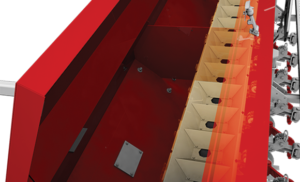

- Seed Hoppers
-

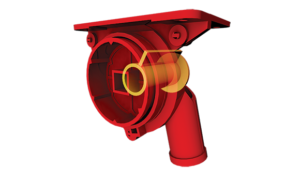

- Seed Meters and Adjustments
-

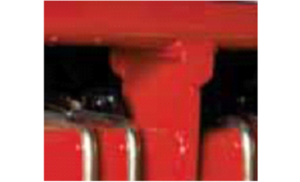

- Extra Heavy Frames
-

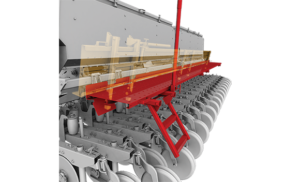

- Walk Boards
9531 FEATURES
- 3-section design has centre flexibility for narrow transport width
- Opener design allows for no-till or conventional seeding applications
- Simple screw adjustment of seed metering rates on individual boxes
- High capacity, low-profile seed boxes convert to seed fertilizer split or all seed
- Maintenance free sprockets on drive mechanism
- Spring loaded drive wheels deliver optimal contact with soil paired with accurate seed and fertilizer meetering
- Walkboards are perforated to be skid-free and have heavy-duty ladders
- Three axis two point or draw bar hitch
SPECS
| MODEL | WORKING
WIDTH (FT) |
TRANSPORT
WIDTH (FT) |
TOTAL HOPPER
CAPACITY (BU) |
WEIGHT W/7.5″
ROW SPACING (LBS) |
POWER
REQUIREMENTS |
| 9531-30 | 30 | 13.42 | 112.50 | 18,408 | 5-10 hp/ft at seeding depth |
| 9531-40 | 40 | 13.42 | 150 | 24,220 | 5-10 hp/ft at seeding depth |
