WR Series Windrower
The Massey Ferguson WR Series has a few major upgrades from the WR9900 models. There are a few key changes that stick out in comparison to the previous series. Immediately visible are the updates to side panel shielding and end cap. These modifications allow for better cooling and air flow. The updated cooling package ensures better airflow across the radiator while also ensuring it is easily accessible to clean and maintain.
Another major change is the conversion from an open centre hydraulic system to a closed one. This allows for up to 10% increased efficiency in fuel savings or 10% more power to the header.
A larger fuel tank, new terminal and crop dividing wheel on the header also provide some additional benefits.
WR Series Specs
- 197 hp to 265 hp
- 24.5 mph
- 150 gal fuel tank
| MODELS | ENGINE | HORSEPOWER RATED / MAX | WEIGHT (APPROXIMATE) W/O HEADER LB (KG) | HEADER COMPATIBILITY |
| WR205 | AGCO Power 7.4 L | 203/216 | 11,420 (5,180) | Disc, Draper |
| WR235 | AGCO Power 7.4 L | 235/250 | 11,420 (5,180) | Disc, Draper |
| WR265 | AGCO Power 7.4 L | 265/282 | 11,420 (5,180) | Disc, Draper |
Features
- Spacious cab with large curved windshield
- Larger instructors seat
- Standard OptiRide™ cab suspension with optional OptiAir™ air ride system
- High visibility lighting package with optional LED lighting
- Large tandem hydraulic header drive pump
- High performance AGCO power engines
- V-Cool™ system for cooling and fuel efficiency, features auto-reversing air direction
- Rear Steer available
Technology

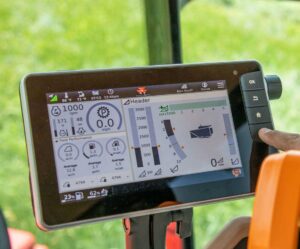

- Datatronic™ 5, 9 inch colour touchscreen terminal
- MF Guide for hands-free steering
- Auto electronic header speed control
- Auto load control
- Constant conditioner roll tension pressure
- Electro-hydraulic steering
- Auto-steering
- V-cool fan speed and reversal
- Auto reel speed
- Auto-header float control
- Auto swathboard control
Disc and Draper Headers
Massey Ferguson 9300 series rotary headers and 5400 series draper headers deliver on control, capacity, performance and cut to ensure the highest productivity and nutrition.
9300 Disc Header Features
- Easily accessible, heavy-duty, self-adjusting spring tensioned belt drives
- Two stub augers for consistent crop flow and windrow formation
- Hydraulic steel on steel conditioner rolls for premium conditioning
- Dual drive hydraulic motors
- Fast and easy roll gap changes for 1/8″ adjustments
- Minimal service points including greaseless composite bushings
| MODEL |
HEADER WIDTH (FT) |
CONDITIONER ROLLS |
NUMBER OF DISCS |
| 9313 S | 13 | 2 | 8 |
| 9313 D | 13 | 4 | 8 |
| 9316 S | 16 | 2 | 10 |
| 9316 D | 16 | 4 | 10 |
5400 Dyna Swath Draper Header Features
- Electronic reel fore/aft
- Heavy duty reel gearbox
- Flip over reel
| MODEL |
CUTTING WIDTH (FT) |
DELIVERY STYLE |
| MF5400-20 | 19′ 9″ | Centre |
| MF5400-25 | 24’9″ | Centre or End |
| MF5400-30 | 29’9″ | Centre or End |
| MF5400-35 | 34’9″ | Centre or End |
| MF5400-40 | 39’9″ | Centre or End |

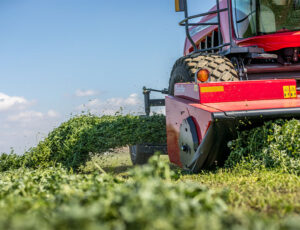

Triple Windrow Attachment
Save times time with the ability to merge three passes into one windrow when baling or forage harvesting. This reduces soil compaction in the field while also removing the need to rake or perform additional merger passes.
