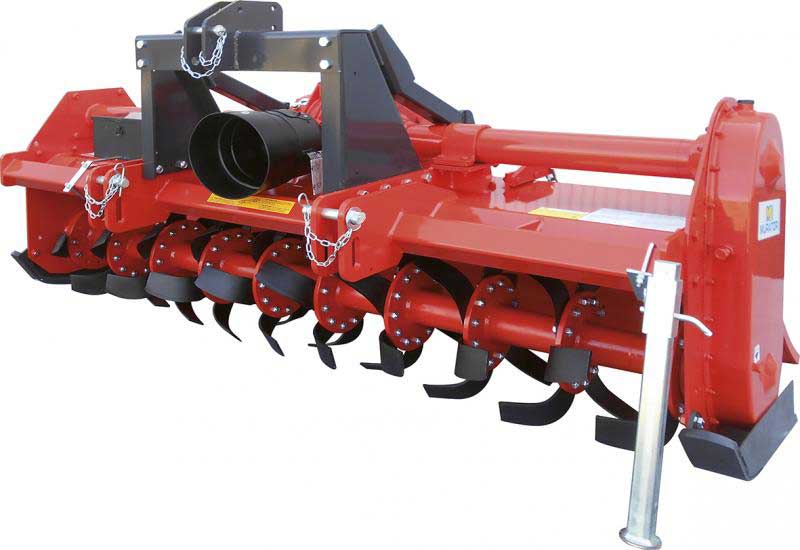

Muratori MZ16C Rotary Tiller
The Muratori MZ16C is designed as an extra heavy-duty rotary tiller for primary and secondary tillage across a wide range of soil conditions. At Hanlon Ag Centre in Lethbridge, Alberta, we work with Southern Alberta farmers looking for durable tillage equipment that can handle large surfaces and demanding field conditions.
Is the Muratori MZ16C worth considering for Southern Alberta farms?
Yes. The Muratori MZ16C is designed for larger acreage operations and contractors needing a heavy-duty rotary tiller capable of working in many soil conditions. Its robust mechanical construction and multiple working widths make it suitable for farms managing broad acre field work and long operating days.
Southern Alberta farmers often deal with varying field conditions, transport distances between quarters, and changing moisture levels. The MZ16C is built with heavy-duty mechanical components and multiple gearbox speeds to support consistent tillage performance across different operating conditions.
- Extra heavy-duty rotary tiller design
- Built for primary and secondary tillage
- Designed for big surfaces and contractor use
- Available in multiple working widths
- Multi-speed gearbox configuration
What tractor horsepower is required for the Muratori MZ16C?
The Muratori MZ16C lineup requires tractors ranging from 70 HP to 110 HP depending on model width. Larger models require more horsepower to maintain rotor performance and productivity in demanding conditions.
For Southern Alberta grain, livestock, and mixed farms, matching the correct tractor horsepower to the implement width is important for maintaining consistent PTO speed and field productivity during long operating hours.
| Model | Working Width | Min Tractor HP | Max Tractor HP | Blades | PTO RPM | Rotor RPM (540 PTO) | Rotor RPM (1000 PTO) |
|---|---|---|---|---|---|---|---|
| MZ16C-205 | 81 in (205 cm) | 70 HP | 120 HP | 48 | 540 / 1000 | 182 / 203 / 310 / 345 | 338 / 375 |
| MZ16C-230 | 91 in (230 cm) | 75 HP | 120 HP | 54 | 540 / 1000 | 182 / 203 / 310 / 345 | 338 / 375 |
| MZ16C-255 | 101 in (255 cm) | 90 HP | 120 HP | 60 | 540 / 1000 | 182 / 203 / 310 / 345 | 338 / 375 |
| MZ16C-305 | 120 in (305 cm) | 100 HP | 120 HP | 72 | 540 / 1000 | 182 / 203 / 310 / 345 | 338 / 375 |
What features stand out on the Muratori MZ16C?
The Muratori MZ16C includes several heavy-duty standard features focused on durability, driveline protection, and operating flexibility. The machine is designed for consistent field performance across large acre operations.
- Category 2 three-point linkage
- Oil bath oversized chain drive
- Oil bath waterproof rotor supports
- Multi-speed gearbox
- Slip clutch driveline protection
- Depth adjustment through side skids
- Curved or square blade configurations
- Six blades per flange
- Standing jack included
The oversized oil bath chain drive and waterproof rotor supports are designed to support long operating hours and demanding tillage conditions. Multiple gearbox speeds provide operating flexibility depending on soil conditions and field requirements.
How does the Muratori MZ16C support productivity in large fields?
The Muratori MZ16C is built for large working areas with widths up to 120 inches (305 cm). Larger working widths help cover more acres efficiently while maintaining consistent tillage depth and rotor performance.
Southern Alberta farms often manage long field passes and large acre counts. The MZ16C lineup offers multiple working widths so operators can match field capacity to tractor size and operating goals.
The multi-speed gearbox includes:
- 4 speeds for 540 RPM PTO
- 2 speeds for 1000 RPM PTO
This allows operators to select rotor speeds appropriate for varying soil and field conditions.
What optional features are available on the Muratori MZ16C?
Muratori offers several optional configurations for farms wanting additional durability or specialized driveline setups. These options allow operators to configure the implement for different tillage requirements and operating conditions.
- Counter flanges on rotor shaft
- 10 mm thicker square blades
- Side gear drive
What do we recommend for Southern Alberta farms?
At Hanlon Ag Centre, we recommend carefully matching working width and horsepower requirements to your operation size and tractor fleet. The MZ16C lineup offers multiple width options for farms managing different field sizes and productivity goals.
Southern Alberta farms operating across larger acre counts or working varied field conditions may benefit from the larger working widths and heavy-duty driveline design available throughout the MZ16C lineup.
Our team in Lethbridge can help compare working widths, PTO configurations, and horsepower requirements to determine the best fit for your operation.
Why talk to Hanlon Ag Centre about Muratori tillage equipment?
Hanlon Ag Centre works closely with Southern Alberta grain, hay, livestock, and mixed farms to help match implements to local operating conditions and equipment requirements. We understand the importance of selecting tillage equipment suited for Prairie acreage, field conditions, and productivity expectations.
- Local Southern Alberta equipment knowledge
- Experience with farm implement sizing and setup
- Support for mixed farming operations
- Convenient Lethbridge location
If you are comparing heavy-duty rotary tillers for your operation, contact Hanlon Ag Centre to discuss Muratori MZ16C configurations, availability, and sizing recommendations.
