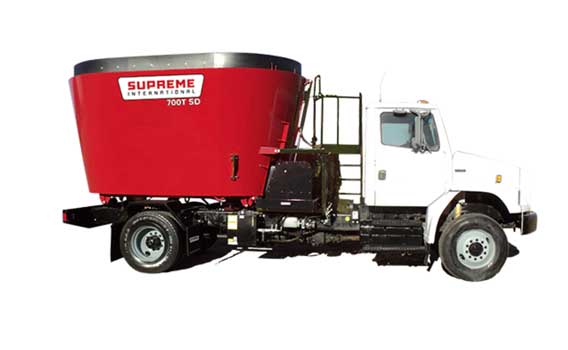

Supreme Truck Mount Mechanical Drive Vertical Mixers
Supreme Truck Mount Vertical Mixers are designed for livestock operations that require efficient feed mixing and delivery in a single machine. Combining Supreme’s patented vertical mixing technology with the mobility of a truck-mounted platform, these mixers are built for high-volume feeding applications where efficiency and productivity are essential. Available in multiple capacities and configurations, they provide dependable mixing performance while allowing operators to quickly transport and deliver feed throughout the operation.
Supreme Truck Mount Vertical Mixer Highlights
- Patented freestanding cylindrical vertical auger technology promotes consistent feed mixing.
- Designed to efficiently produce uniform total mixed rations using a wide variety of feed ingredients.
- Heavy-duty planetary drive system is engineered for dependable daily performance.
- Heavy-duty frame and mixer construction are designed for demanding commercial feeding applications.
- Multiple conveyor and discharge options allow the mixer to be configured for different feeding systems.
- Available in several capacities to meet a wide range of livestock operation requirements.
- Factory-installed options allow producers to customize the mixer to their feeding operation.
Specifications
| Model | Min HP | Unit Capacity | Drive System | Dimensions | Conveyor | Series Options |
|---|---|---|---|---|---|---|
| 500T | 260 hp / 194 kW | Struck Capacity: 565 ft³ / 16.0 m³ Capacity with Extension: 649 ft³ / 18.4 m³ | (2) Heavy-Duty, Two-Stage Planetary Drives | Height*: 84″ / Height w/ 10″ Extension*: 94″ / Overall Width**: 102″ / Overall Length**: 223″ | 8’ Flat Variable Speed Hydraulic Driven Chain Discharge Conveyor with Hydraulic Extender | SD, HD |
| 600T | 260 hp / 194 kW | Struck Capacity: 543 ft³ / 15.4 m³ Capacity with Extension: 635 ft³ / 18.0 m³ | (2) Heavy-Duty, Two-Stage Planetary Drives | Height*: 84″ / Height w/ 10″ Extension*: 94″ / Overall Width**: 102″ / Overall Length**: 223″ | 8’ Flat Variable Speed Hydraulic Driven Chain Discharge Conveyor with Hydraulic Extender | SD, HD |
| 700T | 260 hp / 194 kW | Struck Capacity: 565 ft³ / 16.0 m³ Capacity with Extension: 649 ft³ / 18.4 m³ | (2) Heavy-Duty, Two-Stage Planetary Drives | Height*: 92″ / Height w/ 10″ Extension*: 102″ / Overall Width**: 102″ / Overall Length**: 213" | 8’ Flat Variable Speed Hydraulic Driven Chain Discharge Conveyor with Hydraulic Extender | SD, HD |
| *Height of truck frame to the top of the tub. Add to truck frame height for overall height., **Overall width and length dependent on the style of truck, conveyor/discharge options ordered. |
Which Supreme Mixer Series Is Right for You?
Every livestock operation has different feeding demands. Supreme’s LD, SD, HD and XD mixer packages are designed around duty cycle, allowing producers to choose the level of durability and wear protection that best matches their operation. Whether you’re feeding a smaller cow-calf herd or operating a large commercial feedlot, each series builds on the previous one with increased wear resistance and heavier-duty components.
SD Series (Standard Duty)
The SD Series is built for standard to high duty cycles and is one of Supreme’s most versatile mixer packages. Designed for producers who mix feed regularly, it is well suited for daily feeding programs and operations that require greater wear resistance than the LD Series.
Available in pull-type, truck mount and stationary configurations, the SD Series upgrades key wear components while offering additional customization options.
Standard Features
- Abrasion-resistant tub walls
- Supreme abrasion-resistant augers
- Supreme knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- Hard-faced tub baffles and doors
HD Series (Heavy Duty)
The HD Series is designed for operations with high to extreme duty cycles. Built for producers who demand maximum uptime, this package incorporates additional wear protection and heavy-duty components for longer service life under demanding feeding conditions.
HD mixers are available in pull-type, truck mount and stationary configurations and are equipped with premium wear materials throughout the mixing system.
Standard Features
- Abrasion-resistant tub walls with a 3 mm 3CR12 wall liner
- Supreme abrasion-resistant augers
- Supreme HD knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- 3 mm 3CR12 stainless steel lined augers
- 3 mm 3CR12 tub floor liner
Frequently Asked Questions
Who are Supreme Truck Mount Vertical Mixers designed for?
Truck Mount Vertical Mixers are designed for livestock operations that require both feed mixing and feed delivery in a single machine. They are commonly used in high-volume feeding applications where efficiency and productivity are priorities.
What auger configurations are available?
Supreme Truck Mount Vertical Mixers are available in twin auger configurations, allowing producers to choose a mixer that best matches their feed volume and operational requirements.
Can the mixer be configured for different feeding systems?
Yes. Multiple conveyor and discharge options are available, allowing the mixer to be configured for different feeding facilities and delivery requirements.
What makes Supreme Truck Mount Mixers durable?
Supreme Truck Mount Vertical Mixers feature heavy-duty construction and Supreme’s proven planetary drive system to provide dependable performance in demanding daily feeding applications.
