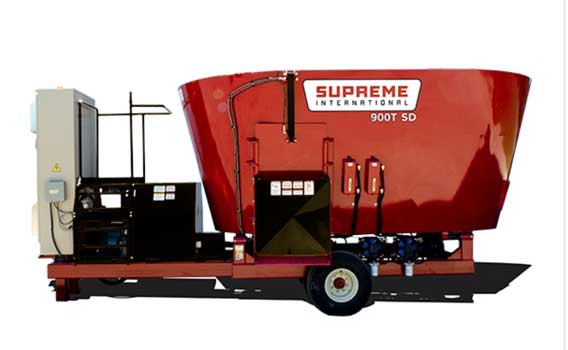

Supreme Stationary Twin Auger Vertical Mixers
Supreme Stationary Twin Auger Vertical Mixers are engineered for permanent feed mixing systems that require increased capacity and dependable daily performance. Designed for beef, dairy and commercial livestock operations, the Twin Auger series combines Supreme’s patented freestanding vertical auger technology with a heavy-duty planetary drive system to produce consistent total mixed rations while efficiently processing a wide variety of feed ingredients. Available in multiple capacities, these stationary mixers integrate into permanent feeding facilities to provide reliable, long-term feed mixing performance.
Supreme Stationary Twin Auger Vertical Mixer Highlights
- Patented freestanding cylindrical twin vertical augers promote fast, consistent feed mixing.
- Designed to produce uniform total mixed rations using a wide variety of feed ingredients.
- Heavy-duty two-stage planetary drive system is engineered for dependable daily operation.
- Stationary design integrates into permanent feed mixing facilities.
- Heavy-duty construction is built for demanding commercial feeding applications.
- Available in multiple capacities to accommodate higher feed volumes.
- Factory-installed options allow the mixer to be configured for specific feeding requirements.
- Designed for reliable, long-term operation with reduced maintenance requirements.
Specifications
| Model | Min HP | Unit Capacity | Drive System | Discharge Options | Series Options |
|---|---|---|---|---|---|
| 500T | 75 HP | Struck Capacity: 479 ft³ / 13.6 m³ Capacity with Extension: 555 ft³ / 15.7 m³ | (2) Heavy-Duty, Two-Stage Planetary Drives | Rear Discharge Door | SD, HD |
| 600T | 100 HP | Struck Capacity: 543 ft³ / 15.4 m³ Capacity with Extension: 635 ft³ / 18.0 m³ | (2) Heavy-Duty, Two-Stage Planetary Drives | Rear Discharge Door | SD, HD |
| 700T | 100 hp | Struck Capacity: 565 ft³ / 16.0 m³ Capacity with Extension: 649 ft³ / 18.4 m³ | (2) Heavy-Duty, Two-Stage Planetary Drives | Rear Discharge Door | SD, HD |
| 900T | 125 HP | Struck Capacity: 731 ft³ / 20.7 m³ Capacity with Extension: 841 ft³ / 23.8 m³ | (2) Heavy-Duty, Two-Stage Planetary Drives | Rear Discharge Door | SD, HD, XD |
| 1200T | 200 HP | Struck Capacity: 935 ft³ / 26.5 m³ Capacity with Extension: 1,075 ft³ / 30.4 m³ | (2) Heavy-Duty, Two-Stage Planetary Drives | Rear Discharge Door | SD, HD, XD |
| 1400T | 250 HP | Struck Capacity: 1,152 ft³ / 32.6 m³ Capacity with Extension: 1,305 ft³ / 37.0 m³ | (2) Heavy-Duty, Two-Stage Planetary Drives | Rear Discharge Door | SD, HD, XD |
| 1450T Gen3 | 250 HP | Struck Capacity: 1,161 ft³ / 32.9 m³ Capacity with Extension: 1,298 ft³ / 36.8 m³ | Gen3 Drive: Heavy-duty Planetaries run Hydrostatically | Rear Discharge Door | SD, HD, XD |
SD Series (Standard Duty)
The SD Series is built for standard to high duty cycles and is one of Supreme’s most versatile mixer packages. Designed for producers who mix feed regularly, it is well suited for daily feeding programs and operations that require greater wear resistance than the LD Series.
Available in pull-type, truck mount and stationary configurations, the SD Series upgrades key wear components while offering additional customization options.
Standard Features
- Abrasion-resistant tub walls
- Supreme abrasion-resistant augers
- Supreme knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- Hard-faced tub baffles and doors
HD Series (Heavy Duty)
The HD Series is designed for operations with high to extreme duty cycles. Built for producers who demand maximum uptime, this package incorporates additional wear protection and heavy-duty components for longer service life under demanding feeding conditions.
HD mixers are available in pull-type, truck mount and stationary configurations and are equipped with premium wear materials throughout the mixing system.
Standard Features
- Abrasion-resistant tub walls with a 3 mm 3CR12 wall liner
- Supreme abrasion-resistant augers
- Supreme HD knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- 3 mm 3CR12 stainless steel lined augers
- 3 mm 3CR12 tub floor liner
XD Series (Extreme Duty)
The XD Series is built for the most extreme duty cycles in the Supreme lineup. Designed for operations that require the highest level of durability, the XD package combines extensive wear protection with heavy-duty components throughout the mixer.
Available in pull-type, truck mount and stationary configurations, XD mixers are engineered for producers who demand maximum durability in the toughest feeding environments.
Standard Features
- Abrasion-resistant tub walls with a 5 mm 3CR12 wall and floor liner
- Supreme abrasion-resistant Xtreme Duty augers
- Supreme HD knives
- Supreme HD backing plates
- Oversized planetary gears
- Auger magnets
Available Upgrades
- Auger hard facing
- 3 mm 3CR12 stainless steel lined augers
Frequently Asked Questions
Why choose a stationary twin auger vertical mixer?
A stationary twin auger mixer is designed for permanent feed mixing installations that require greater batch capacity than a single auger mixer. It provides consistent total mixed ration preparation while integrating into a dedicated feeding system.
Who are Supreme Stationary Twin Auger Vertical Mixers designed for?
These mixers are built for beef, dairy and commercial livestock operations with permanent feed mixing facilities. Multiple capacities are available, allowing producers to select a mixer that matches their herd size and daily feeding requirements.
What are the benefits of a stationary feed mixer?
A stationary mixer creates a dedicated feed preparation area, providing consistent ration mixing while integrating into an established feeding system. This setup is well suited for operations that mix feed daily and want an efficient, permanent solution.
Can Supreme Stationary Twin Auger Mixers be customized?
Yes. Supreme offers a variety of factory-installed options, allowing producers to configure the mixer to suit their feed ingredients, facility layout and operational requirements.
