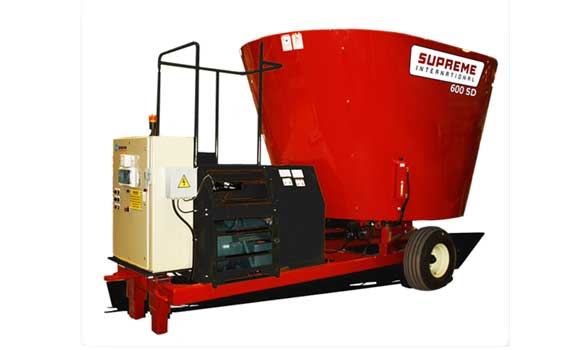

Supreme Stationary Single Auger Vertical Mixers
Supreme Stationary Single Auger Vertical Mixers are designed for permanent feed mixing installations that demand consistent performance and dependable reliability. Built for beef, dairy and commercial livestock operations, these mixers utilize Supreme’s patented freestanding vertical auger technology to produce uniform total mixed rations while handling a wide variety of feed ingredients. Available in multiple capacities, the Stationary Single Auger series offers a practical solution for producers integrating feed mixing into a fixed feeding system where efficiency and long-term durability are essential.
Supreme Stationary Single Auger Vertical Mixer Highlights
- Patented freestanding cylindrical vertical auger promotes fast, consistent feed mixing.
- Designed to produce uniform total mixed rations using a variety of feed ingredients.
- Heavy-duty two-stage planetary drive system is engineered for dependable operation.
- Stationary design integrates into permanent feed mixing facilities.
- Heavy-duty construction is built for demanding daily feeding applications.
- Available in multiple capacities to suit a wide range of livestock operations.
- Factory-installed options allow the mixer to be configured for specific feeding requirements.
- Designed for reliable, long-term performance with reduced maintenance requirements.
Specifications
| Model | Min HP | Unit Capacity | Drive System | Discharge Options | Series Options |
|---|---|---|---|---|---|
| 300 | 50 HP | Struck Capacity: 231 ft³ / 6.5 m³ Capacity with Extension: 275 ft³ / 7.8 m³ | Heavy-Duty, Two-Stage Planetary Drive | Side Door | SD, HD |
| 400 | 50 HP | Struck Capacity: 320 ft³ / 9.1 m³ Capacity with Extension: 378 ft³ / 10.7 m³ | Heavy-Duty, Two-Stage Planetary Drive | Side Door | SD, HD |
| 500 | 75 HP | Struck Capacity: 394 ft³ / 11.2 m³ Capacity with Extension: 459 ft³ / 13.0 m³ | Heavy-Duty, Two-Stage Planetary Drive | Rear Door | SD, HD |
| 600 | 75 HP | Struck Capacity: 465 ft³ / 13.2 m³ Capacity with Extension: 534 ft³ / 15.1 m³ | Heavy-Duty, Two-Stage Planetary Drive | Rear Door | SD, HD |
SD Series (Standard Duty)
The SD Series is built for standard to high duty cycles and is one of Supreme’s most versatile mixer packages. Designed for producers who mix feed regularly, it is well suited for daily feeding programs and operations that require greater wear resistance than the LD Series.
Available in pull-type, truck mount and stationary configurations, the SD Series upgrades key wear components while offering additional customization options.
Standard Features
- Abrasion-resistant tub walls
- Supreme abrasion-resistant augers
- Supreme knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- Hard-faced tub baffles and doors
HD Series (Heavy Duty)
The HD Series is designed for operations with high to extreme duty cycles. Built for producers who demand maximum uptime, this package incorporates additional wear protection and heavy-duty components for longer service life under demanding feeding conditions.
HD mixers are available in pull-type, truck mount and stationary configurations and are equipped with premium wear materials throughout the mixing system.
Standard Features
- Abrasion-resistant tub walls with a 3 mm 3CR12 wall liner
- Supreme abrasion-resistant augers
- Supreme HD knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- 3 mm 3CR12 stainless steel lined augers
- 3 mm 3CR12 tub floor liner
Frequently Asked Questions
What is a stationary vertical feed mixer?
A stationary vertical feed mixer is designed for permanent installation within a livestock feeding facility. It provides consistent total mixed ration preparation while remaining in a fixed location, making it well suited for operations with dedicated feed mixing systems.
Who are Supreme Stationary Single Auger Vertical Mixers designed for?
These mixers are designed for beef, dairy and commercial livestock operations that use a permanent feed mixing facility. Multiple capacities are available to accommodate different herd sizes and feeding requirements.
What are the advantages of a stationary feed mixer?
A stationary mixer provides a dedicated location for feed preparation, helping create consistent total mixed rations while integrating into an established feeding system. This design is well suited for operations with permanent feed handling infrastructure.
Can Supreme Stationary Mixers be customized?
Yes. Supreme offers a range of factory-installed options, allowing producers to configure a stationary mixer to suit their feed ingredients, facility layout and daily feeding requirements.
