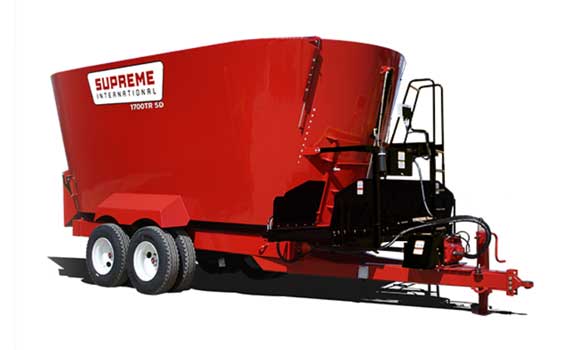

Supreme Pull-Type Triple Auger Vertical Mixers
Supreme Pull-Type Triple Auger Vertical Mixers are engineered for livestock operations with the highest daily feed volume requirements. Designed for large beef, dairy and commercial feeding operations, the Triple Auger series combines Supreme’s patented vertical mixing technology with a heavy-duty planetary drive system to produce consistent total mixed rations while handling large batches efficiently. Available in multiple capacities and configurable with a range of discharge options, these mixers are built to deliver dependable performance in demanding feeding applications.
Supreme Pull-Type Triple Auger Vertical Mixer Highlights
- Patented freestanding cylindrical triple vertical augers provide thorough and consistent feed mixing.
- Designed to efficiently blend a wide variety of feed ingredients into a uniform total mixed ration.
- Heavy-duty two-stage planetary drive system is engineered for dependable daily operation.
- Simple driveline design eliminates chains, sprockets and countershafts to reduce maintenance requirements.
- Heavy-duty frame is built for demanding, high-capacity feeding applications.
- Frame-mounted scale system provides accurate ingredient weighing throughout the mixing process.
- Multiple conveyor and discharge configurations are available to suit different feeding systems.
- Factory-installed options allow the mixer to be configured for individual operation requirements.
- Available in multiple capacities for large livestock operations with high daily feeding demands.
Specifications
| Model | Min HP | Unit Capacity | Drive System | Discharge Options | Conveyor | Series Options |
|---|---|---|---|---|---|---|
| 1500TR | 200 hp / 149 kW | Struck Capacity: 1,192 ft³ / 33.8 m³ Capacity with Extension: 1,356 ft³ / 38.4 m³ | (3) Heavy-Duty, Two-Stage Planetary Drives / 1000 rpm PTO | Flat: 38″ / Dogleg: 52″ / Ext. Dogleg: 63″ / 42″ Folding: 61″ / 54″ Folding: 68″ / Side Door Fixed Chute: 29″ | Front Center Door With 10’ Flat Conveyor | SD, HD, XD |
| 1700TR | 200 hp / 149 kW | Struck Capacity: 1,392 ft³ / 39.4 m³ Capacity with Extension: 1,566 ft³ / 44.3 m³ | (3) Heavy-Duty, Two-Stage Planetary Drives / 1000 rpm PTO | Flat: 38″ / Dogleg: 52″ / Ext. Dogleg: 63″ / 42″ Folding: 61″ / 54″ Folding: 68″ / Side Door Fixed Chute: 29″ | Front Center Door With 10’ Flat Conveyor | SD, HD, XD |
| 1900TR - TANDEM AXLE | 250 hp / 186 kW | Struck Capacity: 1,674 ft³ / 47.4 m³ Capacity with Extension: 1,873 ft³ / 53.0 m³ | (3) Heavy-Duty, Two-Stage Planetary Drives / 1000 rpm PTO / Autoshift Transmission | Flat: 37” / Dogleg: 51” / Ext. Dogleg: 62” / 42” Folding: 60” / 54” Folding: 67” / Side Door Chute: 15” | Front Center Door With 10’ Flat Conveyor | SD, HD, XD |
| 1900TR - TRIDEM AXLE | 250 hp / 186 kW | Struck Capacity: 1,674 ft³ / 47.4 m³ Capacity with Extension: 1,873 ft³ / 53.0 m³ | (3) Heavy-Duty, Two-Stage Planetary Drives / 1000 rpm PTO / Autoshift Transmission | Flat: 41” / Dogleg: 55” / Ext. Dogleg: 66” / 42” Folding: 64” / 54” Folding: 71” / Side Door Chute: 35” | Front Center Door With 10’ Flat Conveyor | SD, HD, XD |
Which Supreme Mixer Series Is Right for You?
Supreme’s LD, SD, HD and XD mixer packages are designed around duty cycle, allowing producers to choose the level of durability and wear protection that best matches their operation. Whether you’re feeding a smaller cow-calf herd or operating a large commercial feedlot, each series builds on the previous one with increased wear resistance and heavier-duty components.
SD Series (Standard Duty)
The SD Series is built for standard to high duty cycles and is one of Supreme’s most versatile mixer packages. Designed for producers who mix feed regularly, it is well suited for daily feeding programs and operations that require greater wear resistance than the LD Series.
Available in pull-type, truck mount and stationary configurations, the SD Series upgrades key wear components while offering additional customization options.
Standard Features
- Abrasion-resistant tub walls
- Supreme abrasion-resistant augers
- Supreme knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- Hard-faced tub baffles and doors
HD Series (Heavy Duty)
The HD Series is designed for operations with high to extreme duty cycles. Built for producers who demand maximum uptime, this package incorporates additional wear protection and heavy-duty components for longer service life under demanding feeding conditions.
HD mixers are available in pull-type, truck mount and stationary configurations and are equipped with premium wear materials throughout the mixing system.
Standard Features
- Abrasion-resistant tub walls with a 3 mm 3CR12 wall liner
- Supreme abrasion-resistant augers
- Supreme HD knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- 3 mm 3CR12 stainless steel lined augers
- 3 mm 3CR12 tub floor liner
XD Series (Extreme Duty)
The XD Series is built for the most extreme duty cycles in the Supreme lineup. Designed for operations that require the highest level of durability, the XD package combines extensive wear protection with heavy-duty components throughout the mixer.
Available in pull-type, truck mount and stationary configurations, XD mixers are engineered for producers who demand maximum durability in the toughest feeding environments.
Standard Features
- Abrasion-resistant tub walls with a 5 mm 3CR12 wall and floor liner
- Supreme abrasion-resistant Xtreme Duty augers
- Supreme HD knives
- Supreme HD backing plates
- Oversized planetary gears
- Auger magnets
Available Upgrades
- Auger hard facing
- 3 mm 3CR12 stainless steel lined augers
Frequently Asked Questions
Who should choose a triple auger vertical feed mixer?
Triple auger vertical mixers are designed for large livestock operations that require maximum mixing capacity and high daily feed output. They are well suited for producers feeding large numbers of cattle while maintaining consistent total mixed rations.
What are the advantages of a triple auger mixer?
The triple auger design provides greater mixing capacity for large batches while maintaining the consistent mixing action Supreme vertical mixers are known for. This allows producers to efficiently prepare feed for larger herds.
What makes Supreme Pull-Type Triple Auger Mixers durable?
Supreme mixers feature a heavy-duty frame and a two-stage planetary drive system designed for demanding feeding applications. The simple driveline design eliminates chains, sprockets and countershafts, helping reduce routine maintenance.
Can a Triple Auger mixer be customized for my feeding operation?
Yes. Supreme offers multiple conveyor and discharge configurations along with factory-installed options, allowing producers to configure the mixer to suit their feeding facilities and operational requirements.
