Supreme Pull-Type Single Auger Vertical Mixers
Supreme Pull-Type Single Auger Vertical Mixers are designed to produce consistent total mixed rations while providing the durability and reliability livestock producers depend on every day. Built for beef, dairy and mixed farming operations, these mixers combine Supreme’s patented vertical mixing technology with a heavy-duty drive system to efficiently process a wide range of feed ingredients. Available in multiple capacities, the Single Auger series allows producers to choose the mixer that best fits their herd size and feeding program while benefiting from simple operation and low-maintenance design.
Supreme Pull-Type Single Auger Vertical Mixer Highlights
- Patented freestanding cylindrical vertical auger promotes fast, consistent feed mixing.
- Volcanic mixing action helps create a uniform total mixed ration.
- Heavy-duty two-stage planetary drive is designed for reliable long-term performance.
- Simple driveline eliminates chains, sprockets and countershafts to reduce maintenance.
- Integrated frame-mounted scale system provides accurate weighing throughout the mixing process.
- Heavy-duty frame is built for demanding daily feeding applications.
- Multiple discharge and conveyor configurations are available to suit different feeding systems.
- Factory options allow producers to configure the mixer for their operation.
- Available in several capacities to match a variety of herd sizes and feeding requirements.
Specifications
| Model | Min HP | Unit Capacity | Drive System | Standard Discharge Ground Clearance | Conveyor or Chute | Available Series |
|---|---|---|---|---|---|---|
| 300 | 50 hp / 37 kW | Struck Capacity: 231 ft³ / 6.5 m³ Capacity with Extension: 275 ft³ / 7.8 m³ | 2-Stage Heavy-Duty Planetary Drive / 540 RPM PTO | Fixed Chute: 25″ / 21″ Fixed: 34″ / 36″ Folding: 41″ / 44″ Folding: 44″ | Left or Right Hand Side Door with Drop Chute | LD, SD, HD |
| 400 | 60 hp / 45 kW | Struck Capacity: 320 ft³ / 9.1 m³ Capacity with Extension: 378 ft³ / 10.7 m³ | 2-Stage Heavy-Duty Planetary Drive / 540 RPM PTO | Fixed Chute: 26″ / 21″ Fixed: 35″ / 36″ Folding: 42″ / 44″ Folding: 45″ | Left or Right Hand Side Door with Drop Chute | LD, SD, HD |
| 500 | 100 hp / 75 kW | Struck Capacity: 394 ft³ / 11.2 m³ Capacity with Extension: 459 ft³ / 13.0 m³ | 2-Stage Heavy-Duty Planetary Drive / 540 or 1,000 rpm PTO | Side Door Fixed Chute: 27″ / Side Door 21″ Fixed: 36″ / Side Door 36″ Folding; 42″ / Side Door 44″ Folding: 46″ / Front Door w/ Conveyor: Flat: 27″ / Front Door w/ Conveyor: Dogleg: 40″ / Front Door w/ Conveyor: Ext. Dogleg: 51″ / Front Door w/ Conveyor: 42″ Folding: 44″ / Front Door w/ Conveyor: 54″ Folding: 49″ | Left or Right Hand Side Door with Drop Chute | LD, SD, HD |
| 600 | 100 hp / 75 kW | Struck Capacity: 465 ft³ / 13.2 m³ Capacity with Extension: 534 ft³ / 15.1 m³ | 2-Stage Heavy-Duty Planetary Drive / 540 or 1,000 rpm PTO | Side Door Fixed Chute: 26″ / Side Door 21″ Fixed: 36″ / Side Door 36″ Folding; 42″ / Side Door 44″ Folding: 46″ / Front Door w/ Conveyor: Flat: 27″ / Front Door w/ Conveyor: Dogleg: 40″ / Front Door w/ Conveyor: Ext. Dogleg: 51″ / Front Door w/ Conveyor: 42″ Folding: 44″ / Front Door w/ Conveyor: 54″ Folding: 49″ | Left or Right Hand Side Door with Drop Chute | LD, SD, HD |
Which Supreme Mixer Series Is Right for You?
Every livestock operation has different feeding demands. Supreme’s LD, SD, HD and XD mixer packages are designed around duty cycle, allowing producers to choose the level of durability and wear protection that best matches their operation. Whether you’re feeding a smaller cow-calf herd or operating a large commercial feedlot, each series builds on the previous one with increased wear resistance and heavier-duty components

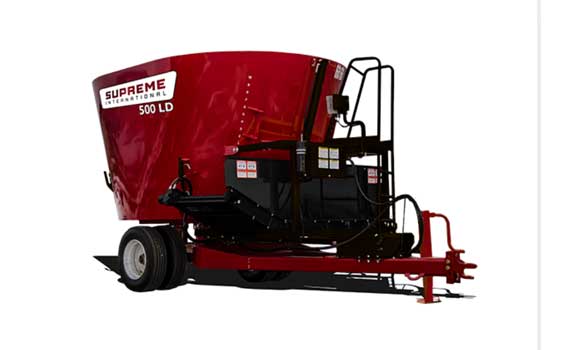

LD Series (Light Duty)
The LD Series is designed for livestock operations with light to standard duty cycles. Ideal for smaller herds and producers looking for an economical entry into vertical feed mixing, LD mixers provide the essential features needed for dependable daily performance.
Available exclusively in pull-type models, the LD Series combines durable construction with proven Supreme mixing components to deliver reliable total mixed ration (TMR) performance.
Standard Features
- Mild steel tub walls
- Supreme mild steel augers
- Supreme knives
- Supreme backing plates
- Robust planetary gears
SD Series (Standard Duty)
The SD Series is built for standard to high duty cycles and is one of Supreme’s most versatile mixer packages. Designed for producers who mix feed regularly, it is well suited for daily feeding programs and operations that require greater wear resistance than the LD Series.
Available in pull-type, truck mount and stationary configurations, the SD Series upgrades key wear components while offering additional customization options.
Standard Features
- Abrasion-resistant tub walls
- Supreme abrasion-resistant augers
- Supreme knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- Hard-faced tub baffles and doors

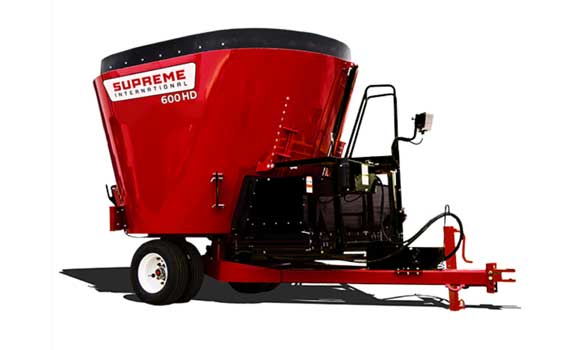

HD Series (Heavy Duty)
The HD Series is designed for operations with high to extreme duty cycles. Built for producers who demand maximum uptime, this package incorporates additional wear protection and heavy-duty components for longer service life under demanding feeding conditions.
HD mixers are available in pull-type, truck mount and stationary configurations and are equipped with premium wear materials throughout the mixing system.
Standard Features
- Abrasion-resistant tub walls with a 3 mm 3CR12 wall liner
- Supreme abrasion-resistant augers
- Supreme HD knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- 3 mm 3CR12 stainless steel lined augers
- 3 mm 3CR12 tub floor liner
Frequently Asked Questions
What are the benefits of a single auger vertical feed mixer?
A single auger vertical mixer is designed to efficiently blend a total mixed ration while processing a variety of feed ingredients. Supreme’s patented vertical auger creates a consistent mixing action that helps produce uniform rations for daily feeding.
Who are Supreme Pull-Type Single Auger Vertical Mixers designed for?
These mixers are built for beef, dairy and mixed livestock operations that require dependable daily feed mixing. With multiple capacity options available, producers can choose a model that matches their herd size and feeding requirements.
What makes the Supreme drive system different?
Supreme Pull-Type Single Auger Vertical Mixers use a heavy-duty two-stage planetary drive designed to provide reliable performance while eliminating chains, sprockets and countershafts. This simple driveline helps reduce routine maintenance.
Can the mixer be configured for different feeding systems?
Yes. Supreme offers multiple discharge and conveyor configurations, allowing producers to select a setup that best fits their feeding facilities and daily operation.
