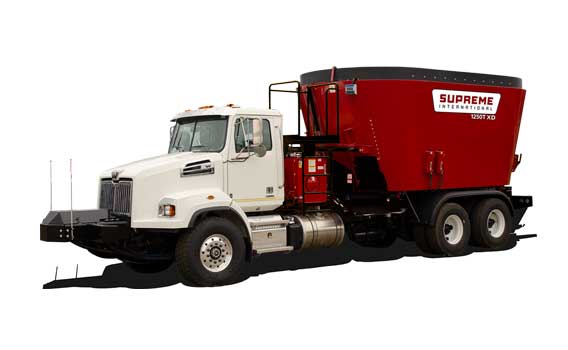

Supreme Gen3 Drive Truck Mount Vertical Mixers
Supreme Gen3 Truck Mount Vertical Mixers are engineered to combine feed mixing and feed delivery into one efficient machine. Designed for high-volume beef, dairy and commercial livestock operations, the Gen3 series features Supreme’s proven vertical mixing technology along with a truck-mounted platform that improves feeding efficiency and productivity. Available in single, twin and triple auger configurations, Gen3 mixers can be configured to meet a wide range of feeding requirements while delivering consistent total mixed rations day after day.
Supreme Gen3 Truck Mount Vertical Mixer Highlights
- Combines feed mixing and feed delivery into one integrated machine.
- Available in single, twin and triple auger configurations.
- Patented freestanding cylindrical vertical auger technology provides consistent total mixed ration performance.
- Heavy-duty planetary drive system is designed for dependable daily operation.
- Heavy-duty mixer construction is built for demanding commercial feeding applications.
- Multiple conveyor and discharge configurations allow the mixer to be matched to different feeding systems.
- Available in multiple capacities to suit a wide range of livestock operations.
- Factory-installed options allow producers to configure the mixer for their operation.
- Designed to improve feeding efficiency by reducing equipment movement around the yard.
Specifications
| Model | Min HP | Unit Capacity | Drive System | Dimensions | Conveyor | Series Options |
|---|---|---|---|---|---|---|
| 900T | 300 hp / 224 kW | Struck Capacity: 731 ft³ / 20.7 m³ Capacity with Extension: 841 ft³ / 23.8 m³ | Gen3 Drive: Heavy-duty Planetaries run Hydrostatically | Height*: 91″ / Height w/ 10″ Extension*: 101″ / Overall Width**: 120″ / Overall Length**: 253″ | 8’ Flat Variable Speed Hydraulic Driven Chain Discharge Conveyor with Hydraulic Extender | SD, HD, XD |
| 1050T | 370 hp / 276 kW | Struck Capacity: 830 ft³ / 23.5 m³ Capacity with Extension: 958 ft³ / 27.1 m³ | Gen3 Drive: Heavy-duty Planetaries run Hydrostatically | Height*: 83″ / Height w/ 10″ Extension*: 93″ / Overall Width**: 120″ / Overall Length**: 271″ | 8’ Flat Variable Speed Hydraulic Driven Chain Discharge Conveyor with Hydraulic Extender | SD, HD, XD |
| 1250T | 370 hp / 276 kW | Struck Capacity: 997 ft³ / 28.2 m³ Capacity with Extension: 1,131 ft³ / 32.0 m³ | Gen3 Drive: Heavy-duty Planetaries run Hydrostatically | Height*: 96″ / Height w/ 10″ Extension*: 106″ / Overall Width**: 120″ / Overall Length**: 277″ | 8’ Flat Variable Speed Hydraulic Driven Chain Discharge Conveyor with Hydraulic Extender | SD, HD, XD |
| 1450T | 400 hp / 298 kW | Struck Capacity: 1,161 ft³ / 32.9 m³ Capacity with Extension: 1,298 ft³ / 36.8 m³ | Gen3 Drive: Heavy-duty Planetaries run Hydrostatically | Height*: 108″ / Height w/ 10″ Extension*: 118″ / Overall Width**: 120″ / Overall Length**: 282″ | 8’ Flat Variable Speed Hydraulic Driven Chain Discharge Conveyor with Hydraulic Extender | SD, HD, XD |
| Height of truck frame to the top of the tub. Add to truck frame height for overall height., **Overall width and length dependent on the style of truck, conveyor/discharge options ordered. |
Which Supreme Mixer Series Is Right for You?
Every livestock operation has different feeding demands. Supreme’s LD, SD, HD and XD mixer packages are designed around duty cycle, allowing producers to choose the level of durability and wear protection that best matches their operation. Whether you’re feeding a smaller cow-calf herd or operating a large commercial feedlot, each series builds on the previous one with increased wear resistance and heavier-duty components.
SD Series (Standard Duty)
The SD Series is built for standard to high duty cycles and is one of Supreme’s most versatile mixer packages. Designed for producers who mix feed regularly, it is well suited for daily feeding programs and operations that require greater wear resistance than the LD Series.
Available in pull-type, truck mount and stationary configurations, the SD Series upgrades key wear components while offering additional customization options.
Standard Features
- Abrasion-resistant tub walls
- Supreme abrasion-resistant augers
- Supreme knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- Hard-faced tub baffles and doors
HD Series (Heavy Duty)
The HD Series is designed for operations with high to extreme duty cycles. Built for producers who demand maximum uptime, this package incorporates additional wear protection and heavy-duty components for longer service life under demanding feeding conditions.
HD mixers are available in pull-type, truck mount and stationary configurations and are equipped with premium wear materials throughout the mixing system.
Standard Features
- Abrasion-resistant tub walls with a 3 mm 3CR12 wall liner
- Supreme abrasion-resistant augers
- Supreme HD knives
- Supreme backing plates
- Oversized planetary gears
Available Upgrades
- Auger hard facing
- 3 mm 3CR12 stainless steel lined augers
- 3 mm 3CR12 tub floor liner
XD Series (Extreme Duty)
The XD Series is built for the most extreme duty cycles in the Supreme lineup. Designed for operations that require the highest level of durability, the XD package combines extensive wear protection with heavy-duty components throughout the mixer.
Available in pull-type, truck mount and stationary configurations, XD mixers are engineered for producers who demand maximum durability in the toughest feeding environments.
Standard Features
- Abrasion-resistant tub walls with a 5 mm 3CR12 wall and floor liner
- Supreme abrasion-resistant Xtreme Duty augers
- Supreme HD knives
- Supreme HD backing plates
- Oversized planetary gears
- Auger magnets
Available Upgrades
- Auger hard facing
- 3 mm 3CR12 stainless steel lined augers
Frequently Asked Questions
What is the Supreme Gen3 Truck Mount Vertical Mixer designed for?
The Gen3 Truck Mount Vertical Mixer is designed for livestock operations that require efficient feed mixing and delivery in one machine. It is well suited for high-volume feeding programs where productivity and consistent ration quality are priorities.
What auger configurations are available in the Gen3 series?
Supreme Gen3 Truck Mount Vertical Mixers are available in twin auger configurations, allowing producers to choose a mixer that matches their daily feed volume and operational requirements.
Can a Gen3 Truck Mount Mixer be configured for different feeding systems?
Yes. Multiple conveyor, discharge and factory-installed options are available, allowing the mixer to be configured to suit different feeding facilities and management practices.
Who should consider a Gen3 Truck Mount Vertical Mixer?
The Gen3 series is a practical choice for feedlots, commercial dairies and large beef operations looking to combine feed mixing and feed delivery while maintaining consistent total mixed ration performance.
