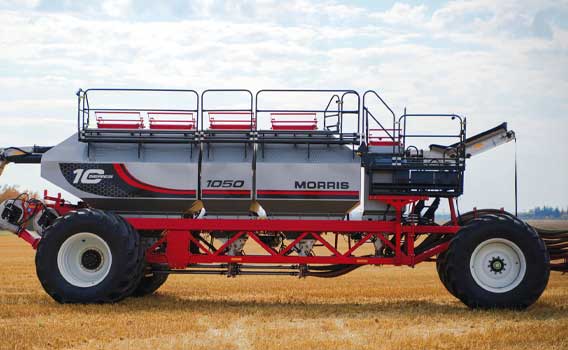

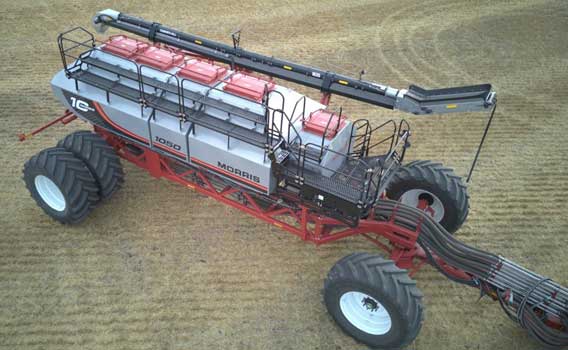

Morris 10 Series Air Cart
The Morris 10 Series Air Cart is designed to deliver accurate product metering and dependable performance throughout the seeding season. Built to work with Morris air drills, the 10 Series combines flexible tank configurations, efficient calibration and precise product delivery to help producers maintain consistent application rates across changing field conditions. Whether seeding cereals, pulses or oilseeds, the 10 Series is engineered to improve productivity while providing the capacity and versatility needed for a wide range of farming operations.
10 Series Highlights
- Available in multiple tank capacities and configurations.
- Designed for accurate product metering and consistent application.
- Multiple compartment options allow flexible seed and fertilizer placement.
- Simple calibration system helps improve efficiency before entering the field.
- Product delivery system promotes even distribution throughout the air drill.
- Large tank capacity helps reduce refill frequency during long seeding days.
- Designed to integrate with Morris seeding systems.
- Built to improve productivity during demanding seeding operations.
Specifications
| Model | Total Capacity | Tank 1 | Tank 2 | Tank 3 | Tank 4 | Weight (Tow Behind) | Weight (Tow Between) |
|---|---|---|---|---|---|---|---|
| 660 | 660 bu • 23258 litres • 9/30/15/46 Split | 60 bu • 74.65 cu ft • 2114 litres | 200 bu • 248.90 cu ft • 7048 litres | 100 bu • 124.45 cu ft • 3524 litres | 300 bu • 373.35 cu ft • 10572 litres | 40385 lbs • 18318 kg | 34661 lbs • 15722 kg |
| 820 | 820 bu • 28896 litres • 10/31/16/43 Split | 80 bu • 99.55 cu ft 2819 litres | 250 bu • 311.09 cu ft • 8809 litres | 135 bu • 167.99 cu ft • 4757 litres | 300 bu • 373.35 cu ft • 10572 litres | 43177 lbs • 19595 kg | 36866 lbs • 16722 kg |
| 1050 | 1050 bu • 37000 litres • 8/31/17/44 Split | 80 bu • 99.55 cu ft • 2819 litres | 330 bu • 410.64 cu ft • 11628 litres | 175 bu • 217.75 cu ft • 6166 litres | 300 bu • 373.35 cu ft • 10572 litres | 44130 lbs • 20017 kg | 37769 lbs • 17132 kg |
| 1440 | 1440 bu • 50744 litres • 8/31/16/45 Split | 110 bu • 136.88 cu ft 3876 litres • | 450 bu • 560.02 cu ft • 15858 litres | 235 bu • 292.44 cu ft • 8281 litres | 645 bu • 802.67 cu ft • 22729 litres | 54490 lbs • 24716 kg | N/A |
What is the Morris 10 Series Air Cart designed to do?
The Morris 10 Series Air Cart is designed to accurately meter and deliver seed and fertilizer to a compatible Morris air drill. Its flexible tank configurations and precision metering system help producers maintain consistent application rates throughout the seeding season.
Can the 10 Series Air Cart carry both seed and fertilizer?
Yes. The 10 Series is available with multiple tank compartment configurations, allowing producers to carry different combinations of seed and fertilizer based on their cropping practices and field requirements.
How does the 10 Series help improve productivity?
Large tank capacities reduce the number of refill stops during the day, while the calibration system is designed to simplify setup before entering the field. Together, these features help maximize productivity during busy seeding windows.
Is the Morris 10 Series compatible with Morris air drills?
Yes. The 10 Series Air Cart is designed to integrate with Morris air drills, providing accurate product delivery and consistent performance as part of the complete Morris seeding system.
Why are multiple tank configurations important?
Different crops and fertilizer programs require different product combinations. Multiple tank configurations give producers greater flexibility to manage seed and fertilizer placement while adapting to changing agronomic needs throughout the season.
