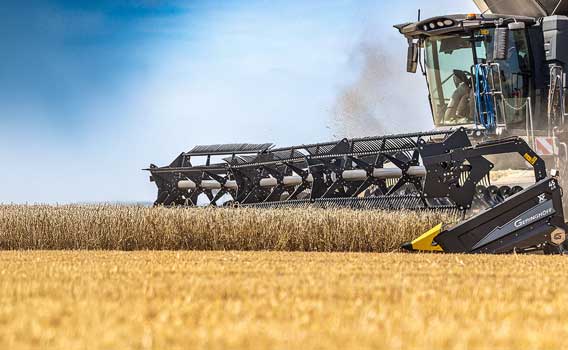

Geringhoff XtremeFlex Draper Header
The Geringhoff XtremeFlex Draper Header delivers a new generation of harvesting performance with outstanding flexibility and crop flow. Designed with a three-part flexible frame and three-part reel, the XtremeFlex provides increased flexibility while maintaining excellent feeding performance in demanding field conditions.
Built for producers with a high proportion of cereals and canola in their crop rotation, the XtremeFlex features a rigid cutterbar, active height control, and centralized knife drive to create a lightweight design that improves responsiveness on uneven terrain. The patented side section design helps maintain consistent reel tine positioning for optimized crop flow.
The floating feeding auger, increased intake speed, and wide draper belts are engineered to handle high-yielding crops with smooth, consistent feeding into the combine. Available options, including the canola kit and Integrated Air System (IAS), allow producers to customize the header for specific crops and harvesting conditions.
- 3-part flexible reel and 3-part frame
- Flexibility increased by 50%
- Rigid knife bar designed for farms with a high proportion of cereals and rapeseed
- Active height control included as standard
- Central knife drive enables lightweight design and maximizes responsiveness on uneven terrain
- Patented side section design optimizes crop flow
- New floating intake auger with increased speed, floating bearings, and up to 34 intake fingers
- More even crop flow and higher throughput in high-yielding crops
- Centralized drive design with all drives positioned in the centre
- Lighter wings and end plates for quick adjustment and adaptation to field contours
- Wide belts designed for high-volume harvesting and larger combines
- Widest reversible centre belt on the market
- Deep side belts provide uniform crop flow
- Adjustable belt speeds controlled through the in-cab terminal
- Enhanced reel design with increased efficiency and higher torque
- Adjustable reel tine angle with 9 different positions
- Optional canola kit for efficient and almost loss-free harvesting of canola and large crops
- Optional Integrated Air System (IAS) for maximizing yield potential in sensitive crops
- Optional Yield EyeQ AI-supported harvest technology
Specifications
| Model | Working Width | Reel | Frame | Flexibility (Angle by 14º) | Cutter Bar | Weight |
|---|---|---|---|---|---|---|
| XF 35 | 34 ft 11 in | 3-part | 3-part | 37.2 in | rigid | 10,714 lbs |
| XF 40 | 40 ft 0 in | 3-part | 3-part | 44.5 in | rigid (starr) | 11,111 lbs |
| XF 45 | 44 ft 11 in | 3-part | 3-part | 51.6 in | rigid | 11,762 lbs |
| XF 50 | 49 ft 10 in | 3-part | 3-part | 51.6 in | rigid | 13,056 lbs |
2 Year Warranty & Extended Warranty
Upgrading your warranty is as simple as 1, 2, 3!
In addition to Geringhoff’s best-in-class, standard 2-year warranty, Geringhoff Warranty Extension allows you to extend your warranty for an additional 1, 2, or 3 years. That’s up to 5 years of total warranty coverage!
- 1, 2, or 3 years of extended coverage
- Parts and labour covered
- Low claim deductible
- Hassle-free processing
For more details, visit:
www.Geringhoff.com/warrantyextension
Frequently Asked Questions About the Geringhoff XtremeFlex Draper Header
What makes the Geringhoff XtremeFlex Draper Header different?
The Geringhoff XtremeFlex combines a three-part flexible frame and three-part reel with a rigid cutterbar to provide outstanding flexibility, crop flow, and harvesting performance. Its design helps producers handle demanding cereal and canola harvesting conditions.
What crops is the XtremeFlex Draper Header designed for?
The XtremeFlex is designed for high-performance harvesting of cereals, canola, and other high-yielding crops. Its advanced feeding system and available options allow producers to customize performance for their crop conditions.
How does the XtremeFlex improve crop flow?
The XtremeFlex uses a floating feeding auger, wide draper belts, and optimized reel design to provide smooth crop movement and consistent feeding into the combine, even in high-volume harvesting conditions.
How does the XtremeFlex follow uneven field conditions?
The XtremeFlex features a flexible three-part frame, lightweight wings, and centralized drive design to improve responsiveness and help the header adapt to changing field contours.
What is the benefit of the centralized drive design?
The centralized drive design places key components in the centre of the header, including the reel drive, knife drive, hydraulic pumps, oil tank, and cross auger drive. This reduces wing weight and improves adjustment to field conditions.
What advantages does the XtremeFlex feeding auger provide?
The floating feeding auger provides height compensation to maintain crop flow to the combine. With increased intake speed, additional torque, and tool-less tine adjustment, it is designed to handle heavy and high-volume harvesting conditions.
Is a canola kit available for the Geringhoff XtremeFlex?
Yes. The optional canola kit allows efficient and almost loss-free harvesting of canola and larger crops. It includes two side-mounted vertical knives and a large cross auger to improve crop handling.
What is the Integrated Air System (IAS) on the XtremeFlex?
The optional Integrated Air System (IAS) uses controlled airflow to help move escaped seeds and pods back onto the draper belt. This technology is designed to help maximize yields in sensitive crops.
What warranty coverage is available for the Geringhoff XtremeFlex?
The XtremeFlex includes a standard 2-year warranty, with options to extend coverage by an additional 1, 2, or 3 years for up to 5 years of total warranty coverage.
