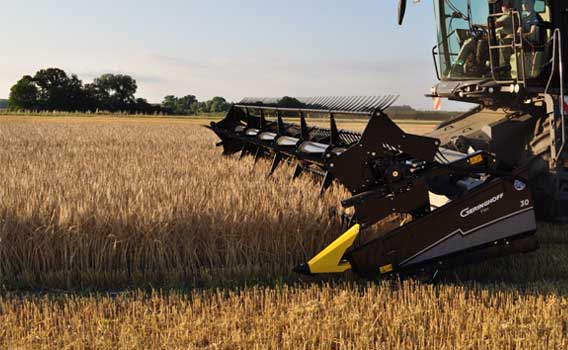

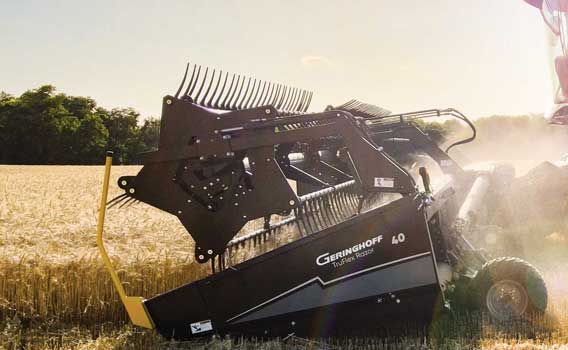

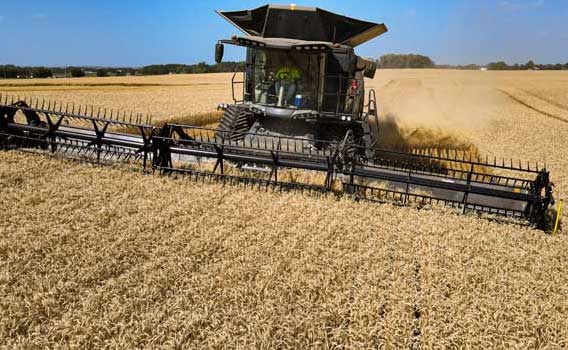

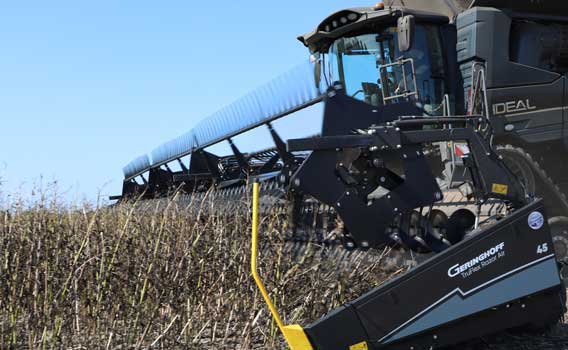

Geringhoff TruFlex Razor Draper Header
The Geringhoff TruFlex Razor Draper Header is an all-around header designed for exceptional harvesting performance with a 3-section flex-point reel and frame, along with a flexible cutterbar for superior contouring. Built to handle challenging field conditions, the TruFlex Razor provides excellent ground following and harvesting performance across uneven terrain.
The TruFlex Razor features a height control system for grain and soybean harvesting, operated by the combine and calibrated through a separate terminal for precise control and activation of different functions. With the optional Integrated Air System (IAS), the TruFlex Razor helps increase yield potential by creating even airflow at the cutterbar to carry grains back onto the belt.
For producers harvesting canola and larger crops, the optional canola kit allows efficient and almost loss-free harvesting. The kit includes two side-mounted vertical knives and a large cross auger to improve crop handling and feeding performance.

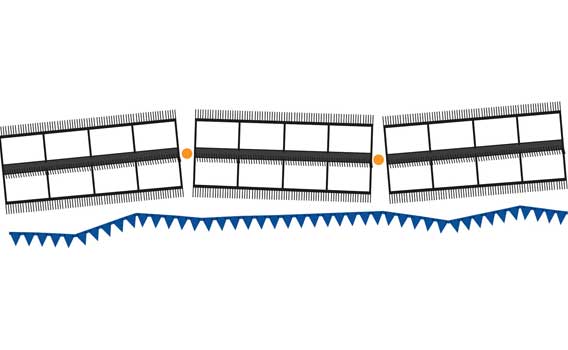

- 3 section frame contours to uneven terrain
- Exceptional crop flow in all conditions
- Cutting angle adjustment
- Narrow 4 inch side panels due to central cutterbar drive
- Easy-open side panel door
- Tool-free changing of the dividers
- Large center fed auger
- Widest center belt on the market
- Adjustable belt speed
- Deep belts
- Hydraulic knife drive
- Double knife system with overload protection
- Actuated gauge wheels to better hug the ground
- Optional Integrated Air System (IAS) fully integrated air system for increased yield potential
- Optional large cross auger and canola kit
- Optional high stubble kit for harvesting small grains
Specifications
| Model | Specs |
|---|---|
| Working Width | 35 ft, 40 ft, 45 ft |
| 3 Section Frame Design | 35 ft: Flex range 9º or 26.5 in. / 40 ft: Flex range 9º or 31 in / 45 ft: Flex range 9º or 36 in |
| Reel | Three-section (Flex +4º up & -5º down) |
| Cutterbar | Flexible |
| Flexible Cutterbar | Up to 6 in |
| Height Control System | Grain and soybean height control |
| Application area | Wheat, soybeans, specialty crops |
2 Year Warranty & Extended Warranty
Upgrading your warranty is as simple as 1, 2, 3!
In addition to Geringhoff’s best-in-class, standard 2-year warranty, Geringhoff Warranty Extension allows your customers to extend their warranty for an additional 1, 2, or 3 years. That’s up to 5 years of total warranty coverage!
- 1, 2, or 3 years of extended coverage
- Parts and labor covered
- Low claim deductible
- Hassle-free processing
For more details, visit:
www.Geringhoff.com/warrantyextension
Frequently Asked Questions About the Geringhoff TruFlex Razor Draper Header
What makes the Geringhoff TruFlex Razor different from other draper headers?
The Geringhoff TruFlex Razor combines a 3-section flex-point reel and frame with a flexible cutterbar to provide exceptional contouring and ground-following performance. This design helps producers maintain consistent harvesting performance across uneven terrain.
What crops can the Geringhoff TruFlex Razor harvest?
The TruFlex Razor is designed for versatile harvesting applications, including grain, soybeans, canola, and larger crops. Optional equipment packages allow producers to customize the header for specific crop conditions.
How does the TruFlex Razor improve crop flow?
The TruFlex Razor uses a large centre-fed auger, wide centre belt, deep belts, and adjustable belt speed to provide smooth and consistent crop flow in a variety of harvesting conditions.
How does the TruFlex Razor follow uneven terrain?
The TruFlex Razor uses a 3-section flexible frame, flexible cutterbar, and actuated gauge wheels to better follow ground contours. This helps maintain cutting performance and improve crop pickup in variable field conditions.
What is the Integrated Air System (IAS) on the TruFlex Razor?
The optional Integrated Air System (IAS) provides controlled airflow at the cutterbar to help carry grains back onto the belt. This helps improve crop capture and increase yield potential, especially when harvesting crops close to the ground.
Is the TruFlex Razor available with a canola kit?
Yes. The optional canola kit helps producers efficiently harvest canola and larger crops. It includes two side-mounted vertical knives and a large cross auger to improve crop feeding and help minimize losses.
What maintenance features are included on the TruFlex Razor?
The TruFlex Razor includes maintenance-friendly features such as an easy-open side panel door, tool-free divider changes, hydraulic knife drive, and double knife system with overload protection.
What warranty coverage is available for the Geringhoff TruFlex Razor?
The TruFlex Razor includes a standard 2-year warranty, with options to extend coverage by an additional 1, 2, or 3 years for up to 5 years of total warranty protection.
